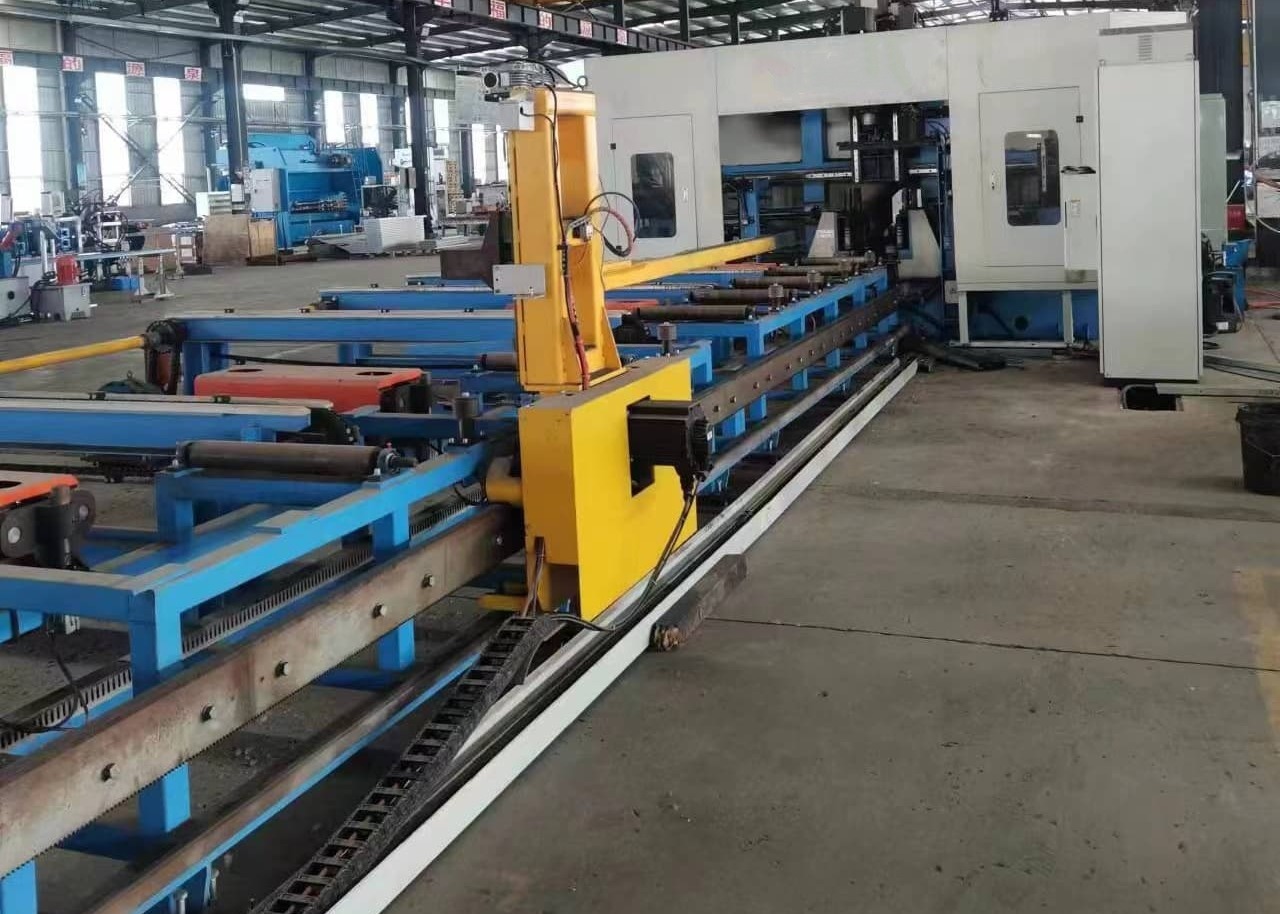

BHD500 Model CNC Steel Drilling Shearing Machine 3 Tool Magazines Beam Drilling Machine
Application:
This CNC plate punching drilling and marking equipment is primarily designed for performing drilling, tapping, marking, and scoring operations on steels including H-section steel, channel steel, and angle steel. It is extensively applied across steel structure industries such as building construction, garage construction, tower manufacturing, and grid structure engineering.
Specifications:
|
Model
|
BHD500/3 |
BHD700/3 |
BHD1000/3 |
BHD1250/3 |
|
H Beam width
range (mm)
|
100~500 |
100~700 |
100~1000 |
100~1250 |
|
H Beam height
range (mm)
|
100~500 |
100~500 |
100~500 |
100~600 |
|
Channel steel
width range (mm)
|
100~500 |
100~700 |
100~1000 |
100~1250 |
|
Channel steel
height range (mm)
|
100~250 |
100~250 |
100~250 |
100~300 |
|
Max. workpiece
thickness (mm)
|
40 |
40 |
80 |
80 |
|
Max. workpiece
length (m)
|
12 or 15 (optional) |
|
Drilling spindle qty.
|
Total 3 spindles, one spindle on the upper unit, left side
and right side respectively
|
|
Spindle hole
taper
|
BT40 |
BT40 |
BT40 |
BT40 |
|
Max.drilling
diameter (mm)
|
40 |
40 |
40 |
40 |
|
Spindle motor power
(kW)
|
11 |
11/ 15 |
11/ 15 |
11/ 15 |
|
Spindle speed
(r/min)
|
100~3000 |
100~3000 |
100~3000 |
100~3000 |
|
Spindle feeding
speed (m/min)
|
0~10 |
0~10 |
0~10 |
0~10 |
|
X-axis feeding speed
(m/min)
|
0~40 |
0~20 |
0~20 |
0~20 |
|
Qty of tool magazine
|
3 |
3 |
3 |
3 |
|
Tool magazine
type and capacity
|
Row type, 3x4 (optional) |
|
Marking unit (optional)
|
Disc typing, 36 characters, character size Φ10mm
|
| CNC system |
German, Japan, China INVT
|
| Cooling method |
Spray cooling, internal cooling + external cooling |
|
Overall Size (m)
|
About 32x5x3.5 |
About 33x5.5x3.5 |
About 33x5.5x3.5 |
About 33x6x3.5 |
| Total Power (kW) |
About 55 |
About 55 |
About 60 |
About 60 |
The above parameters can be adjusted and changed according to customer's specific requirements.
1. An essential and specialized drilling equipment for the building steel structure industry.
2. Capable of drilling holes on three surfaces of H-beams and channel steels simultaneously, featuring high precision and high efficiency.
3. Equipped with 7 CNC axes, which automatically accomplish accurate feeding and positioning.
4. Able to recognize AUTOCAD and DSTV workpiece drawings, and convert them into machining programs.
Product Features
1. The hydraulic disk marking machine can be equipped optionally. The disk is positioned via servo motor and can mark 36 different characters rapidly.
2. Automatic scribing and tapping functions replace traditional manual scribing. Scribing tools can be used to mark the plate positions for the next welding process on H-beam flanges and webs, saving time and effort while improving accuracy. Tapping can also be performed on H-beam flanges and webs, significantly improving production efficiency.
3. The work piece clamping during the feeding and processing, the longitudinal lifting of the clamp and the lateral push clamping, clamp fixing and loosening are all completed by the hydraulic system, which ensures the reliability of the equipment during operation.
4. The control system consists of a host computer and PLC, with key components from renowned international brands. Multiple programming methods allow operators to easily edit various programs. Structural design data generated by third-party AutoCAD or TEKLA Structures systems, such as DXF and DSTV files, can be imported.
In the course of sample demonstration activities, the CNC beam plate metal drilling, marking, and shearing machine is able to effectively exhibit its processing performance while operating on standard H-beam samples (characterized by different flange widths and web thicknesses) as well as channel steel samples with diverse dimensions. The samples presented in these demonstrations distinctly demonstrate the machine tool’s capacity to realize accurate hole positioning, smooth tapped threads, and legible marking patterns—thereby fully embodying its high precision and dependability in real-world application scenarios.
The High-Speed CNC H-Beam Drilling, Marking and Shearing Machine is mainly applied in steel structure workshops and bridge construction initiatives. Inside steel structure workshops, it conducts precision machining on H-beams utilized for frameworks and support structures, thus building a sturdy foundation for the stable assembly of steel structures. In bridge construction contexts, it implements high-accuracy drilling work on H-beams—this not only aids in improving the structural integrity of bridges but also enables them to effectively endure long-term loads. Possessing high operational efficiency, the machine offers reliable support to these critical infrastructure fields, safeguarding the smooth advancement of related projects.
